MT-TP-XH
Quick Specifications
| ◆ Volt: 208-480V | ◆ High uniformity of illumination |
| ◆ Frequency: 50/60Hz | ◆ Q90 life-time exceeds 50 000hrs |
| ◆ Watts: 1400W | ◆ More efficient and stable wireless connection |
| ◆ Current at 208V: 7.08A | ◆ Compact structure with efficient heat dissipation |
| ◆ Current at 277V: 5.32A | ◆ Easy to install and maintain |
| ◆ Current at 347V: 4.24A | ◆ Max Ambient Temp: 40℃ |
| ◆ Current at 480V: 3.07A | ◆ Weight-Light: 11.85kg / 26.12lb |
| ◆ Power factor >0.95 | ◆ Weight-Driver:5.7kg / 12.57lb |
Certification

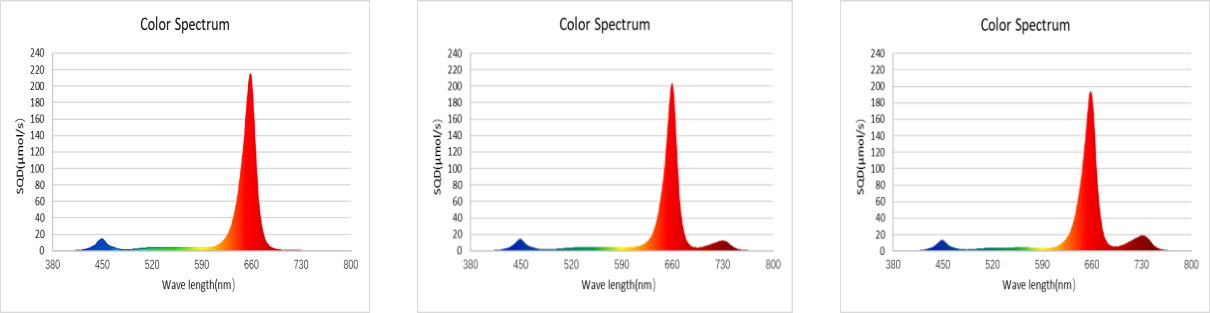

Spectral Distribution
Product Specifications
| Model |
Growth Spectrum |
Beam Angle |
Input Voltage |
PPF μmol/s |
PPE μmol/J |
Input Watts |
IP Rating |
Control |
| MT-TP-XH | R90G5B5 | 130° | AC208-480V | 5300 | 3.8 | 1400W | IP66 | Wireless |
| MT-TP-XH | FR5R85G5B5 | 130° | AC208-480V | 5200 | 3.75 | 1400W | IP66 | Wireless |
| MT-TP-XH | R90G5B5/FR10 | 130° | AC208-480V | 5300 | 3.8 | 1400W | IP66 | Wireless |

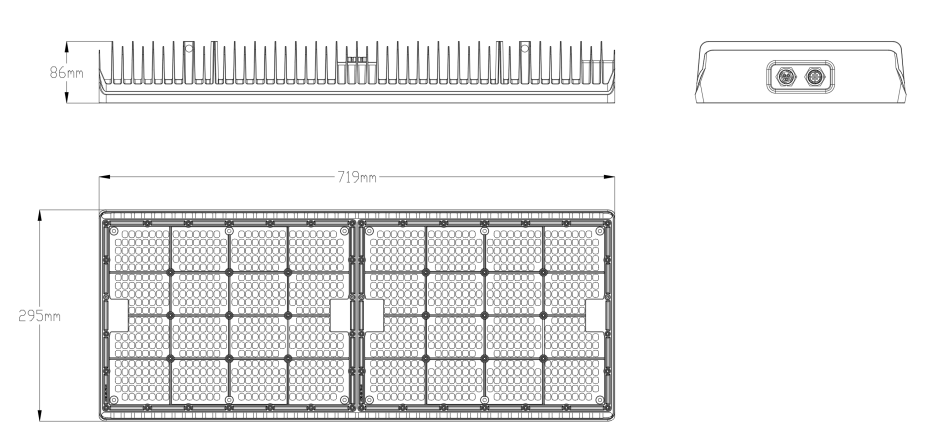

Dimensions
Packaging Information
| Model |
Carton Size |
N.W per carton |
G.W per carton |
Quantity per pallet |
40'GP |
| Light | 729*304*94mm | 11.85kg / 26.12lb | 12.6kg / 27.78lb | 73PCS | 1460 PCS |
| Driver | 810*663*62mm | 5.7kg / 12.57lb | 29.5kg / 65.04lb | 217PCS | 4333PCS |
