MT-TP-XJ
Quick Specifications
| ◆ Volt: 208-480V | ◆ High uniformity of illumination |
| ◆ Frequency: 50/60Hz | ◆ Q90 life-time exceeds 50 000hrs |
| ◆ Watts: 1200W | ◆ More efficient and stable wireless connection |
| ◆ Current at 208V: 6.07A | ◆ Compact structure with efficient heat dissipation |
| ◆ Current at 277V: 4.56A | ◆ Easy to install and maintain |
| ◆ Current at 347V: 3.64A | ◆ Max Ambient Temp: 40℃ |
| ◆ Current at 480V: 2.63A | ◆ Weight-Light: 9.2kg / 20.28lb |
| ◆ Power factor >0.95 | ◆ Weight-Driver:3.2kg / 7.05lb |
Certification

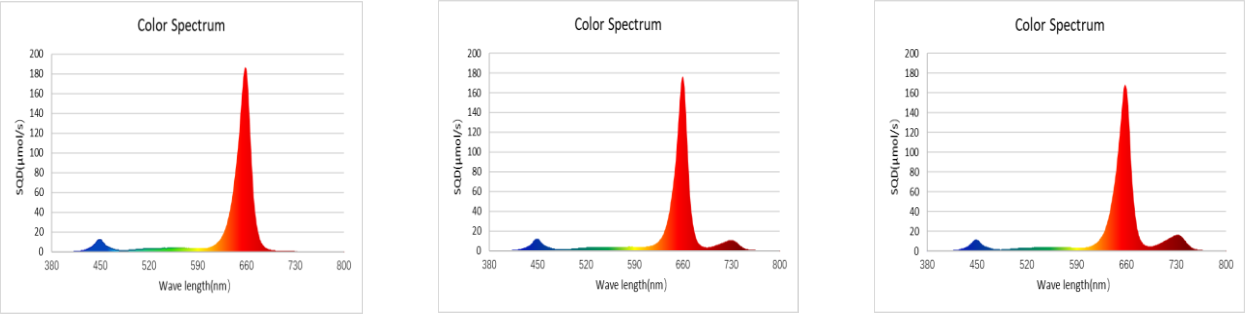

Spectral Distribution
Product Specifications
| Model |
Growth Spectrum |
Beam Angle |
Input Voltage |
PPF μmol/s |
PPE μmol/J |
Input Watts |
IP Rating |
Control |
| MT-TP-XJ | R90G5B5 | 130° | AC208-480V | 4550 | 3.8 | 1200W | IP66 | Wireless |
| MT-TP-XJ | FR5R85G5B5 | 130° | AC208-480V | 4500 | 3.75 | 1200W | IP66 | Wireless |
| MT-TP-XJ | R90G5B5/FR10 | 130° | AC208-480V | 4550 | 3.8 | 1200W | IP66 | Wireless |

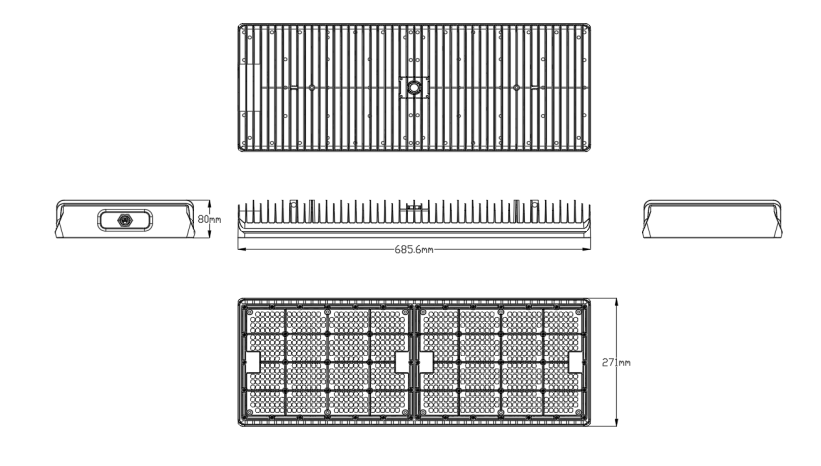

Dimensions
Packaging Information
| Model |
Carton Size |
N.W per carton |
G.W per carton |
Quantity per pallet |
40'GP |
| Light | 695*280*90mm | 9.2kg / 20.28lb | 10kg / 22.05lb | 79PCS | 1580 PCS |
| Driver | 704*285*96mm | 32kg / 70.55lb | 33kg / 72.75lb | 394PCS | 7870PCS |
